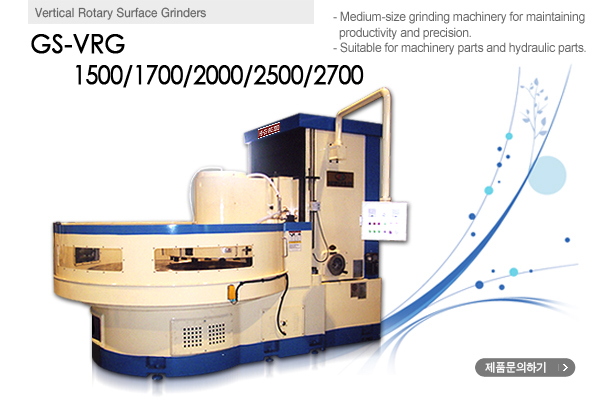

홈 > 제품정보 > GS-VRG 1500/1700/2000/2500/2700 |
|
|
|
 |
| |
|
|
| MODEL |
GS-VRG 1500 |
GS-VRG 1700 |
GS-VRG 2000 |
GS-VRG 2500 |
GS-VRG
2700 |
Grinding
Capability |
Magnetic diameter |
(mm) |
1500 |
1700 |
2000 |
2500 |
2700 |
| Swing-in cover |
(mm) |
1700 |
2100 |
2700 |
3000 |
3000 |
| Working piece inlet diameter |
(mm) |
2000 |
2000 |
2500 |
2800 |
2800 |
| Max. grinding diameter |
(mm) |
370 |
370 |
370 |
370 |
370 |
| Table loading capacity |
(kg) |
1500 |
1500 |
2000 |
2000 |
2000 |
| Table |
Magnetic table speed |
(mm) |
8 |
8 |
8 |
8 |
8 |
Wheel
Head |
Wheel outer diameter |
(min) |
1000 |
1000 |
1250 |
14000 |
14000 |
| Wheel spindle speed |
(min) |
2000 |
510 |
480 |
450 |
450 |
| Wheel peripheral speed |
(m/min) |
2000 |
1610 |
1884 |
1978 |
1978 |
| Wheel head frinding in-feed |
(mm/min) |
2000 |
(0.1-1.5) |
(0.1-1.5) |
(0.1-1.5) |
(0.1-1.5) |
| Hand wheel feed |
(mm/rev) |
2000 |
0.3 |
0.3 |
0.3 |
0.3 |
Electrical
System |
Wheel spindle motor |
(kW) |
55.6P |
55.6P |
55.6P |
75.6P |
75.6P |
| Table driver motor |
(kW) |
5.5 |
5.5 |
7.5 |
7.5 |
7.5 |
| Wheel head feed motor |
(kW) |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
| Coolant motor |
(kW) |
0.1 |
0.1 |
0.75 |
0.75 |
0.75 |
| Power |
(kVA) |
45.6 |
45.6 |
65.45 |
85.45 |
85.45 |
| Machine mass |
(kg) |
16000 |
16000 |
19000 |
21000 |
21000 |
| * Specifications and structure may change without notice. |
|
|
|
