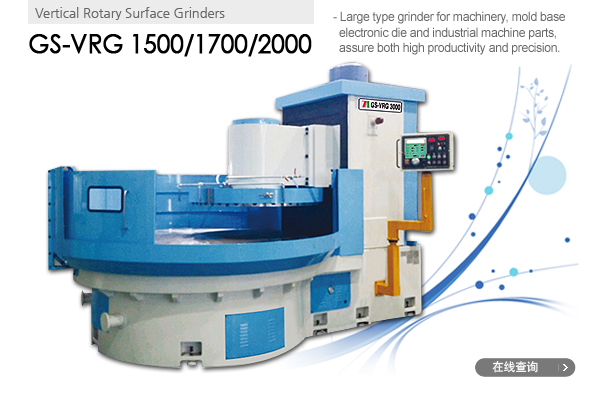

| GS-VRG 1500/1700/2000 |
 |
HOME > 产品信息 > GS-VRG 1500/1700/2000 |
|
|
|
 |
| |
|
|
|
| MODEL |
GS-VRG 1500 |
GS-VRG 1700 |
GS-VRG 2000 |
| Grinding Capability |
Magnetic diameter |
(mm) |
1500 |
1700 |
2000 |
| Swing-in cover |
(mm) |
2100 |
2100 |
2700 |
| Working piece inlet diameter |
(mm) |
2000 |
2000 |
2500 |
| Max. grinding diameter |
(mm) |
370 |
370 |
370 |
| Table loading capacity |
(kg) |
1500 |
1500 |
2000 |
| Table |
Magnetic table speed |
(mm) |
8 |
8 |
8 |
| Wheel Head |
Wheel outer diameter |
(min) |
1000 |
1000 |
1250 |
| Wheel spindle speed |
(min) |
510 |
510 |
480 |
| Wheel peripheral speed |
(m/min) |
1601 |
1601 |
1884 |
| Wheel head frinding in-feed |
(mm/min) |
(0.1-1.5) |
(0.1-1.5) |
(0.1-1.5) |
| Hand wheel feed |
(mm/rev) |
0.3 |
0.3 |
0.3 |
| Electrical System |
Wheel spindle motor |
(kW) |
55.6P |
55.6P |
55.6P |
| Table driver motor |
(kW) |
5.5 |
5.5 |
7.5 |
| Wheel head feed motor |
(kW) |
2.2 |
2.2 |
2.2 |
| Coolant motor |
(kW) |
0.4 |
0.4 |
0.75 |
| Power |
(kVA) |
45.6 |
45.6 |
65.45 |
| Machine mass |
(kg) |
16000 |
16000 |
19000 |
| * 本公司随时在进行研究改进工作，规格和结构可能会变更，这时恕不另行通知 |
|
| |
|
|
