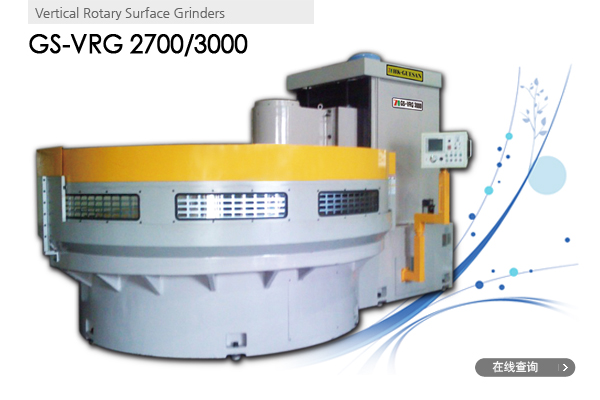

| MODEL |
GS-VRG 2700 |
GS-VRG 3000 |
| Capability |
Swing capacity inside water guard |
3000 |
3300 |
| Magnetic chuck diameter |
2700 |
3000 |
| Vertical range |
400 |
400 |
| Table |
Chuck rotation |
0~10 |
0~8 |
| Table range |
· |
· |
System
Specifications |
Table vertical traverse |
400 |
400 |
| Manual feed 1/rev |
0.2 |
0.2 |
| Automatic feed |
0.001 |
0.001 |
| Table vertical rapid traverse rate |
300mm/min |
300mm/min |
| Grinding Wheel |
Grinding wheel size |
1500 |
1400 |
| Rotation speed (r.p.m) |
650 |
480 |
| Wheel Head |
Peripheral speed of wheel |
1675m/min |
2161m/min |
| Traverse rate |
50~2000mm/min |
50~2000mm/min |
| Motor |
Grinding wheel |
75rp 6P |
75rp 6P |
| Hydraulic unit |
1.5kW |
1.5kW
|
| Vertical traverse |
AC Servo 2.5kW |
AC Servo 4kW |
| Chuck rotation gear motor |
15rp |
15rp |
| Lubrication (Table) |
0.1kW |
0.1kW |
| Lubrication (Slide) |
· |
0.1kW |
| Coolant separator |
0.75kW |
0.75kW |
| Magnetic separator |
0.4kW |
0.4kW |
| * 本公司随时在进行研究改进工作，规格和结构可能会变更，这时恕不另行通知 |
